7000 Series Barcode Verifiers

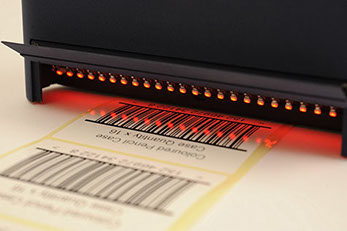

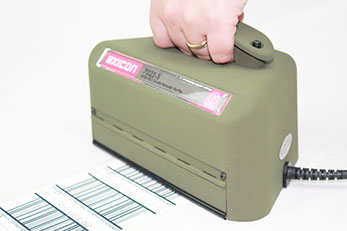

The ?S? range of Axicon verifiers (7025-S) has a continuous scan feature, which means that obtaining at least ten different readings throughout the height of the barcode (as required by ISO/IEC) is much faster. Simply place the verifier slightly above or below the barcode, press the trigger and slide the verifier over the code ? in less than a second you can have results of up to 100 scans of the code at different points in the bar height.
Features & Benefits
ISO/IEC verification with ANSI option, traditional verification, symbology auto-discrimination, automatic variable aperture, scan saving and loading, static reflectance meter, display of x-dimension and magnification, individual bar and space dimensional analysis.? Product look-up option and other software plugins are available to validate data content of codes such as PZN, CIP, ISBN, ISSN.
A CCD imager-based linear barcode verifier, designed to be ISO/IEC compliant. Aperture automatically switchable between aperture reference numbers 08, 10 and 20.? Scan width 195 mm (including quiet zones).? Wavelength of light 660 nm. Weight: 1kg. Size: 215 x 120 x 125 mm.

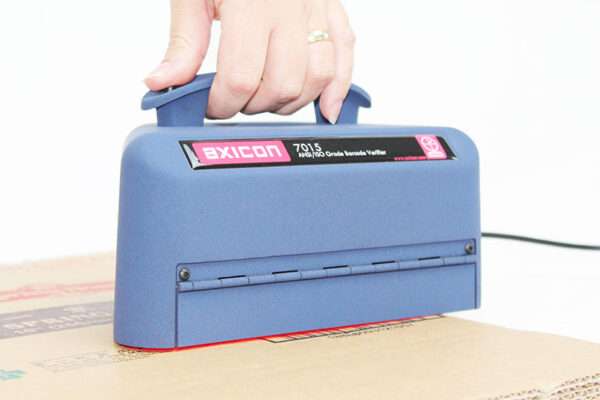

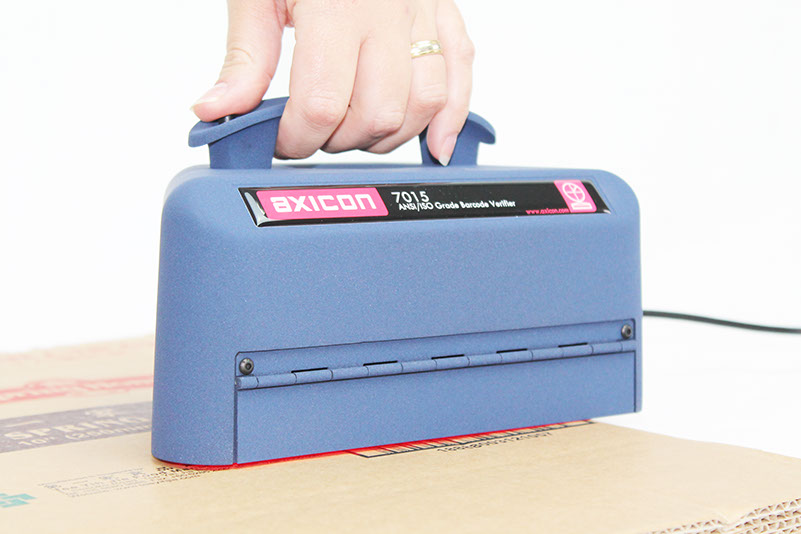

The 7000 series barcode verifiers are also available with a IP50 (International Protection, or sometimes known as Ingress Protection) rating. As defined by standard IEC 60529, the IP50 version protects against all harmful dust particles. The 7015-IP50 is suitable for a dusty environment such as fibreboard packaging handling areas.
USB or RS232 (optional)
Designed to function with any PC running any currently supported version of Microsoft Windows, or the Axicon PV-1000 portable display unit.
The verifier is supplied as the verifier read-head, its data cable, a CD with the Axicon verifier software (in several languages), a quick start guide, a calibration card and compliance certificates in a protective carry case.
For more information, download the 7000 Series?Brochure.
