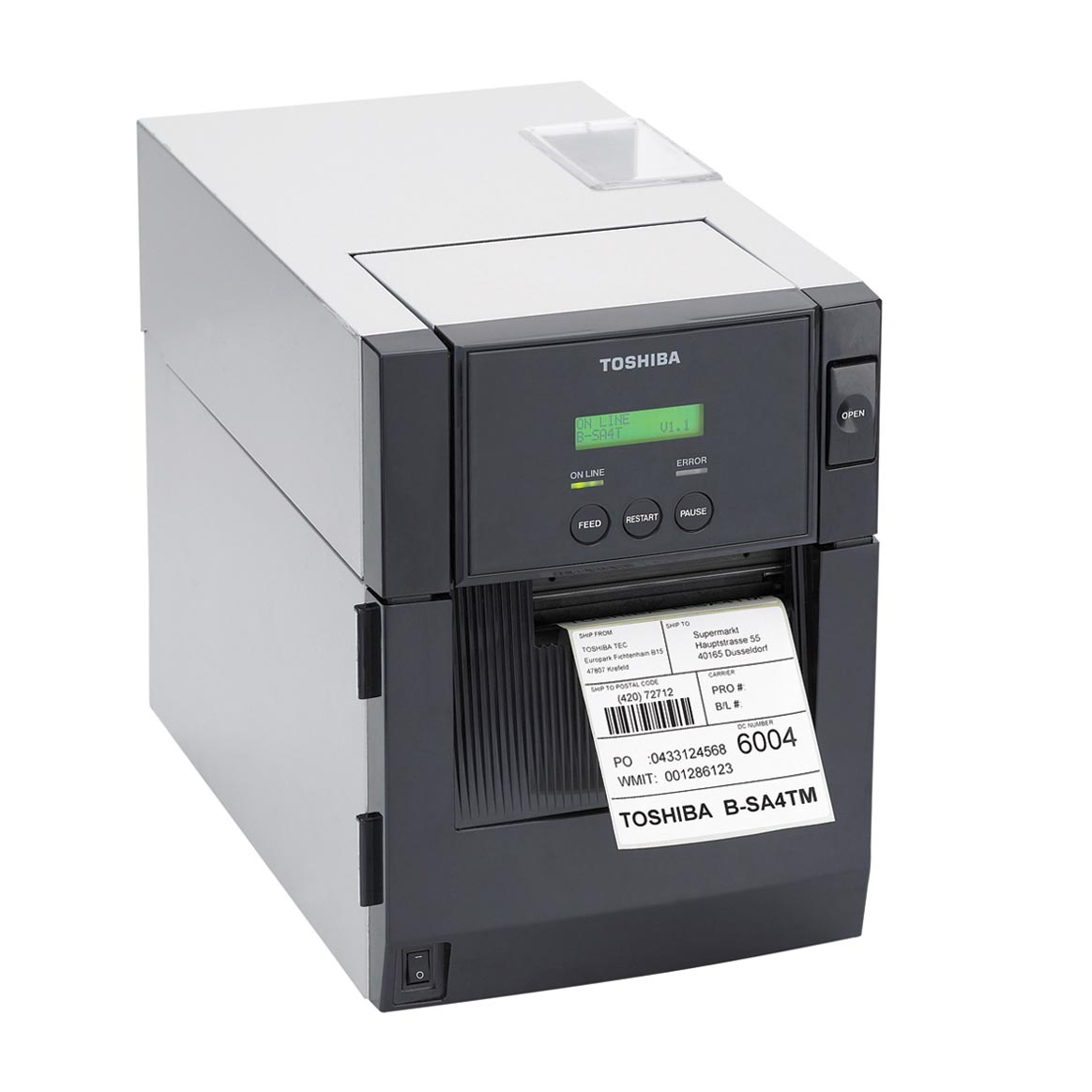

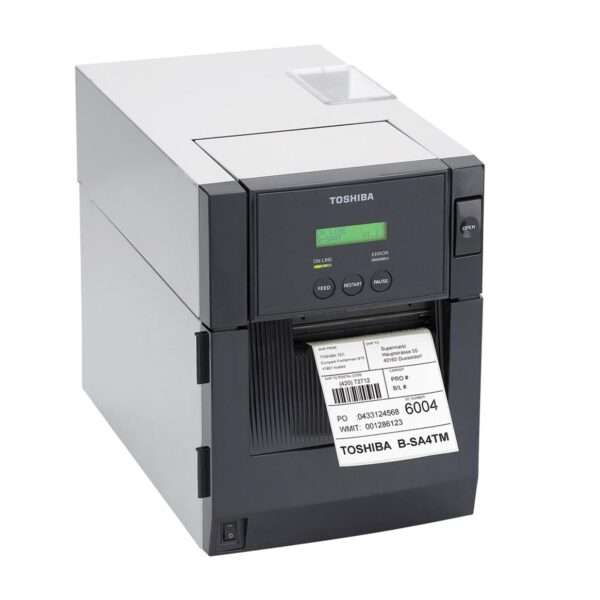

TOSHIBA B-SA4

Ideal for transport and logistics, manufacturing and automotive applications

Available with either a metal or plastic outer casing, and 200dpi or 300dpi print quality, the B-SA4 range offers networking functionality as standard via the Central Network Management Suite which allows the user to manage all printers via their IP address and serial number.



Description

Ideal for transport and logistics, manufacturing and automotive applications

Available with either a metal or plastic outer casing, and 200dpi or 300dpi print quality, the B-SA4 range offers networking functionality as standard via the Central Network Management Suite which allows the user to manage all printers via their IP address and serial number.

  • 104mm print width
  • Print speeds of up to 6 inches per second
  • Toolless replacement of the printhead and platen roller
  • Supplied with Bartender Lite as standard

The SA4 metal case printer holds a maximum 8″ outer diameter label roll, the SA4 plastic case printer holds a maximum 6″ outer diameter label roll.

B-SA4 Full Details (6.1 MB)
B-SA4 Ticketing Case Study (393 KB)
B-SA4 Transport Case Study (437 KB)

MAIN PARTS:

Partcode Description
B-SA4TM-GS12-QM-R Thermal Transfer / Direct / Metal 200 DPI, LAN, USB, Parallel, 15MB SDRAM, 16MB Flash, 6 ips
B-SA4TM-TS12-QM-R Thermal Transfer / Direct / Metal 300 DPI, LAN, USB, Parallel, 15MB SDRAM, 16MB Flash, 6 ips
B-SA4TP-GS12-QM-R Thermal Transfer / Direct 200 DPI, LAN, USB, Parallel, 15MB SDRAM, 16MB Flash, 6 ips
B-SA4TP-TS12-QM-R Thermal Transfer / Direct 300 DPI, LAN, USB, Parallel, 15MB SDRAM, 16MB Flash, 6 ips



ACCESSORIES:

Partcode Description
B-SA204-QM-R Cutter
B-SA204P-QM-R Cutter
B-SA704-IO-QM-R I/O Interface
B-SA704-RFID-U2-EU-R AGC RFID Kit UHF (868 MHz)
B-SA704-RS-QM-R RS-232 Interface
B-SA704-RTC-QM-R RTC Real time clock
B-SA704-WLAN-QM-R Wireless LAN Interface
B-SA904-H-QM-R Peel off module
B-SA904P-H-QM-R Peel off module



CONSUMABLES:

Partcode Description
B4530110AW3 110m x 300m Wax, 10 rolls per box



RIBBONS:

Partcode Description
B4525060SG2 60mm x 250m Was Resin, 10 rolls per box
B4525060SS1 60mm x 250m Scratch/Solvent Resistent, 10 rolls per box
B4525060SW1 60mm x 250m Resin Enhanced Wax, 10 rolls per box
B4525083SG2 83mm x 250m Wax Resin, 10 rolls per box
B4525083SS1 83mm x 250m Scratch/Solvent Resistent, 10 rolls per box
B4525083SW1 83mm x 250m Resin Enhanced Wax, 10 rolls per box
B4525110SG2 110mm x 250m Wax Resin, 10 rolls per box
B4525110SS1 110mm x 250m Scratch/Solvent Resistent, 10 rolls per box
B4525110SW1 110mm x 250m Resin Enhanced Wax, 10 rolls per box
B4527060AG3 60mm x 270m Wax Resin, 10 rolls per box
B4527060AS1 60mm x 270m Scratch/Solvent Resistent, 10 rolls per box
B4527083AG3 83mm x 270m Wax Resin, 10 rolls per box
B4527083AS1 83mm x 270m Scratch/Solvent Resistent, 10 rolls per box
B4527095AG3 95mm x 270m Wax Resin, 10 rolls per box
B4527095AS1 95mm x 270m Scratch/Solvent Resistent, 10 rolls per box
B4527110AG3 110mm x 270m Wax Resin, 10 rolls per box
B4527110AS1 110mm x 270m Scratch/Solvent Resistent, 10 rolls per box
B4530060AW3 60mm x 300m Wax, 10 rolls per box
B4530083AW3 83mm x 300m Wax, 10 rolls per box
B4530090AW3 90mm x 300m Wax, 10 rolls per box
BSA40060AG3 60mm x 400m Wax Resin, 10 rolls per box
BSA40060AS1 60mm x 400m Scratch/Solvent Resistant, 10 rolls per box
BSA40076AG3 76mm x 400m Wax Resin, 10 rolls per box
BSA40076AS1 76mm x 400m Scratch/Solvent Resistant, 10 rolls per box
BSA40090AG3 90mm x 400m Wax Resin, 10 rolls per box
BSA40090AS1 90mm x 400m Scratch/Solvent Resistant, 10 rolls per box
BSA40110AG3 110mm x 400m Wax Resin, 10 rolls per box
BSA40110AS1 110mm x 400m Scratch/Solvent Resistant, 10 rolls per box
BSA45060AW3 60mm x 450m Wax, 10 rolls per box
BSA45060SG2 60mm x 450m Wax Resin, 10 rolls per box
BSA45060SS1 60mm x 450m Scratch/Solvent Resistant, 5 rolls per box
BSA45060SW1 60mm x 450m Resin Enhanced Wax, 5 rolls per box
BSA45076AW3 76mm x 450m Wax, 10 rolls per box
BSA45076SG2 76mm x 450m Wax Resin, 10 rolls per box
BSA45076SS1 76mm x 450m Scratch/Solvent Resistant, 5 rolls per box
BSA45076SW1 76mm x 450m Resin Enhanced Wax, 5 rolls per box
BSA45088SG2 88mm x 450m Wax Resin, 10 rolls per box
BSA45088SS1 88mm x 450m Scratch/Solvent Resistant, 5 rolls per box
BSA45088SW1 88mm x 450m Resin Enhamced Wax, 5 rolls per box
BSA45090AW3 90mm x 450m Wax, 10 rolls per box
BSA45110AW3 110mm x 450m Wax, 10 rolls per box
BSA45110SG2 110mm x 450m Wax Resin, 10 rolls per box
BSA45110SS1 110mm x 450m Scratch/Solvent Resistent, 5 rolls per box
BSA45110SW1 110mm x 450m Resin Enhanced Wax, 5 rolls per box

DT LABELS:

Partcode Description
L00740-155 102mm x 38mm DT,LPR=4225,8″OD/3″ inner,4RPB, Perm
L80156-101 57 x 102 mm DT, LPR=1432, 8″OD/3″inner, 8RPB, Perm
L80170-076 102mm x76mm DT,LPR=1890, 8″OD/3″ inner, 4RPB, Perm
L80170-101 102mm x 102mm DT,LPR=1432,8″OD/3″ inner,4RPB,Perm

TT LABELS:

Partcode Description
L00622-125 57mm x 32mm TT,LPR=5087,8″OD/3″ inner,4RPB,Perm
L00640-155 102mm x 38mm TT,LPR=4225,8″OD/3″ inner,4RPB, Perm
L00640-305 102mm x 76mm TT,LPR=2238,8″OD/3″ inner,4RPB,Perm
L6089 148mm x 210mm TT,LPR=700,8″OD/3″ inner,4RPB,Perm
L6528
102mm x 102mm TT,LPR=1432,8″OD/3″ inner,4RPB,Perm
L80134-127 102mm x 127mm TT,LPR=1154,8″OD/3″ inner,4RPB,Perm

SPARE PARTS:

Partcode Description
7FM00973000 Print Head 203 dpi
7FM00973100 Print Head 300 dpi

Additional information

Options

B-EX6T1 – Near Edge Ribbon, 305dpi [Mfr Part # B-EX6T1-TS12-QM-R], B-EX6T1 – Near Edge Ribbon, 203dpi [Mfr Part # B-EX6T1-GS12-QM-R], B-EX6T3 – Flat Head Ribbon, 305dpi [Mfr Part # B-EX6T3-TS12-QM-R], B-EX6T3 – Flat Head Ribbon, 203dpi [Mfr Part # B-EX6T3-GS12-QM-R]
