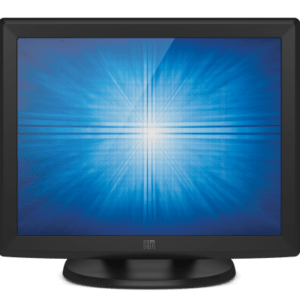

Elo 1515L Multifunction 15″ Desktop Touchscreen Monitor | 15-inch LCD Desktop, VGA Video Interface, IntelliTouch/AccuTouch, USB & RS232 Touch Controller Interface, EMEA-version, Anti-Glare, Charcoal Gray

Product Codes: E399324, E344320

Overview

The Elo 1515L Touchscreen Monitor 15-inch standard format touchscreen monitor delivers professional-grade built for touch reliability in an affordable compact footprint. The space-saving touchscreen includes a stable base, side controls and lock-out capability for public use. Whether used as a desktop or a wall-mounted unit, the 1515L offers flexibility for mounting and two touch technology options.

Integrated touch.

The 15-inch touchscreen monitor features AccuTouch  five-wire resistive and IntelliTouch? surface acoustic wave (SAW) with an anti-glare display and Dual/Serial USB ready for any retail or hospitality environment.



MSR ready.

The optional ergonomic three-track mag stripe reader (MSR), is easily installed providing an elegant, integrated solution. The MSR is available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1



Flexible mounting.

The Elo 1515L offers multiple mounting options to ensure installation flexibility including: wall-mount and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand.



Commercial grade.

The 15-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.





Elo 1515L Touchscreen Monitor other Features:

• Economical and reliable
• Energy-saving LED backlights
• Up to 1024 x 768 resolution at 75 Hz
• Touchscreen sealed against dirt, dust and liquids
• Dual serial/USB interface
• Removable stand and?VESA mounting?option
• Mounting holes on stand bottom for tabletop security
• Digital on-screen display (OSD)
• Both Internal power and optional external 12VDC power supply
• Worldwide agency approvals
• Three-year standard warranty







Additional information

Options	1515L IntelliTouch (EMEA) [Mfr Part # E399324], 1515L AccuTouch (EMEA) [Mfr Part # E344320]

Part Number(s):
IntelliTouch (Worldwide) – E700813
IntelliTouch (EMEA) – E399324
AccuTouch (Worldwide) – E210772
AccuTouch (EMEA) – E344320
AccuTouch (China) – E109123
Enclosure Color: Dark Gray
Touch Technology & Capacity:
5-Wire Resistive (AccuTouch?) – Single-Touch
SAW (IntelliTouch? Surface Acoustic Wave) – Single Touch
Diagonal Size: 15” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio:4:3
Active Area (mm):12.0″ x 9.0″ / 304mm x 228mm
Resolution:1024 x 768 @ 60, 70, 75 Hz, 65 Hz (Sun)
Other Supported Resolutions:
640 x 350 70 Hz
640 x 480 60, 72, 75 Hz
640 x 480 66 Hz (Mac)
720 x 400 at 70 Hz
800 x 600 at 56, 60, 72 or 75 Hz
832 x 624 at 75 Hz (Mac)
1024 x 768 65 Hz (Sun)
1024 x 768 60, 70, 75 Hz
Viewing Angle: Horizontal: ?80? or 160? total / Vertical: ?70? or 140? total
Number of Colors: 16.7 million
Brightness (typical):

LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nits
Response Time-total (typical): 8 msec
Contrast Ratio: 800:1
Input Video Format: Analog VGA
Input Video Signal Connector: Mini D-Sub 15-Pin VGA type
Power Supply: Internal AC, Optional external DC (power brick)
Input Voltage: AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ?5%
Input Connector: AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Input Frequency: Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz
Power Consumption (Typical):15.5W
On Screen Display:
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controls
Monitor Dimensions (with Stand): 13.8″ x 12.2″ x 6.9″ / 350mm x 310mm x 175mm
Shipping Box Dimensions: 17.52″ x 14.96″ x 10.24″ / 445mm x 380mm x 260mm
Weight (with stand): 10.6 lb / 4.8 kg
Weight (without stand): 7.3 lb / 3.3 kg
Shipping Weight (With stand): 15.4 lb / 7.0 kg
Operating Temperature: 0?C to 40?C / 32?F to 104?F
Storage Temperature: -20?C to 60?C / -4?F to 140?F
Humidity: Operating: 20% to 80%; Storage: 10% to 90%
Sealability:?
Touchscreen sealed to bezel
Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated
Mounting Options:
75 mm VESA mount
Threaded-through mounting holes, under stand
Other Features: Security lock receptacle
Warranty: 3-year
Extended Warranty Options:
4 year warranty coverage?- Elo P/N:?E898247
5 year warranty coverage?- Elo P/N:?E898449
3 year warranty coverage + AUR?- Elo P/N:?E898648
4 year warranty coverage + AUR?- Elo P/N:?E894921
5 year warranty coverage + AUR?- Elo P/N:?E895125
Regulatory approvals and declarations:?
North America / Worldwide Models: UL, cUL, FCC, IC, CE, UKCA, CB, Semko or Demko, VCCI, RCM
Asia Models: UL, cUL, FCC, IC, CE, UKCA, CB, Semko, VCCI, RCM, BSMI, CCC, KC, China RoHS
What’s in the Box:?
E210772/ E700813:
1515L monitor
Quick Install Guide
User Manual CD
VGA Cable (DB-15 male to DB-15 male)
Touch USB Cable (USB Type A plug to USB Type B plug)
power cable, IEC 60320-C5 to NA plug

E344320/ E399324:
1515L monitor
Quick Install Guide
User Manual CD
VGA Cable (DB-15 male to DB-15 male)
Touch USB Cable (USB Type A plug to USB Type B plug)
power cable, IEC 60320-C5 to UK/EU plug
Replacement DC Power Supply:
The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E005277, is available at additional cost.
AC Power Cable:?
A North American power cable (E604766) is included with the part numbers available in the regions other than EMEA. European and UK AC power cables are included with the part numbers available for the EMEA region. AC power cables for power brick are also available at at additional cost:
United States: E042259
Europe: E690013
United Kingdom: E235317
Optional IntelliTouch Stylus Pen:?
Stylus pen with rubber tip, designed specifically for use with IntelliTouch or iTouch surface wave touch technology. Part number D82064-000, available at additional cost.
Touch/Video/Audio/Accessory Cables: USB touch cable and VGA video cable are included.
Optional Peripherals: Magnetic Stripe Reader (Dark Grey MSR) ? Elo P/N: E177037
Optional Stand: Part number E245090, available at additional cost.
