Elo 1715L Touchscreen Monitor | 17-inch LCD Desktop, VGA Video Interface, IntelliTouch/AccuTouch, USB & RS232 Touch Controller Interface, Worldwide-version, Anti-Glare, Charcoal Gray

0 out of 5


Product Codes: E719160, E603162

The 1523L 15-inch standard format touchscreen monitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. The sleek, edge-to-edge glass design of the 1523L brings a clean, modern feel to any environment. The zero-bezel touchmonitor is available in both black or white with Elo’s industry-leading touch technologies, both providing a stable drift-free operation with outstanding image clarity, resolution and light transmission – for an accurate touch response and vivid images.


  • Integrated peripheral options include a Magnetic Stripe Reader (MSR), RFID reader and webcam
  • Integrated cable management
  • iTouch Plus surface acoustic wave (SAW) touchscreen couples zero-bezel design with multi-touch
  • Dual position stand – single hinge with high/low settings and tilt functionality
  • Desktop, wall or VESA mounting
  • Internal speakers


Elo 1715L Touchscreen Monitor | 17-inch LCD Desktop, VGA Video Interface, IntelliTouch/AccuTouch, USB & RS232 Touch Controller Interface, Worldwide-version, Anti-Glare, Charcoal Gray

Product Codes: E719160, E603162

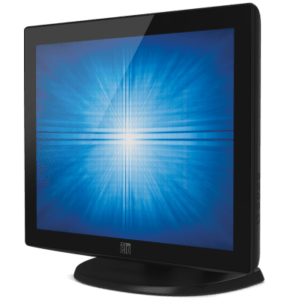

The Elo 1715L 17-inch standard format touchscreen monitor delivers professional-grade built-for-touch reliability in an affordable compact footprint. The space-saving touchscreen includes a stable base, side controls and lock-out capability for public use. Whether used as a desktop or a wall-mounted unit, the 1715L offers flexibility for mounting and three touch technology options.

Flexible mounting.

The 1715L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand.

Integrated touch.

The 17-inch touchscreen monitor features AccuTouch five-wire resistive and IntelliTouch surface acoustic wave (SAW) with an anti-glare display and Dual/Serial USB ready for any retail or hospitality environment.


Introducing the ELO 17-Inch Touchscreen Monitor – A Fusion of Precision and Versatility

Immerse yourself in a world of seamless interaction with the ELO 17-Inch Touchscreen Monitor, a pinnacle of technological excellence designed for retail and hospitality environments. This monitor boasts a sophisticated combination of AccuTouch five-wire resistive and IntelliTouch surface acoustic wave (SAW) technologies, ensuring precision and responsiveness like never before.

Exceptional Touch Technology: AccuTouch five-wire resistive technology guarantees precise touch response, allowing users to navigate effortlessly through applications and menus. The IntelliTouch surface acoustic wave (SAW) technology takes it a step further, delivering an immersive touch experience with unparalleled clarity and accuracy.

Anti-Glare Display: Say goodbye to unwanted glare and reflections – the ELO 17-Inch Touchscreen Monitor features an anti-glare display, providing crystal-clear visuals even in challenging lighting conditions. Whether used in a bustling retail space or a vibrant hospitality setting, this monitor ensures optimal visibility at all times.

Dual/Serial USB Ready: Adaptability is at the core of the ELO experience. With Dual/Serial USB connectivity, this touchscreen monitor seamlessly integrates into your existing setup. Experience hassle-free installation and connectivity, making it an ideal choice for businesses seeking efficiency without compromising on performance.

Tailored for Retail and Hospitality: Designed with the specific needs of retail and hospitality environments in mind, this 17-inch touchscreen monitor is a versatile solution for point-of-sale systems, interactive kiosks, and customer engagement displays. Elevate your customer experience with a device that aligns seamlessly with your business goals.

Durability Meets Elegance: Built to withstand the demands of high-traffic environments, the ELO touchscreen monitor combines durability with an elegant design. The robust construction ensures longevity, making it a reliable investment for businesses looking for a display solution that stands the test of time.

Enhance Interactivity: Transform the way you engage with customers and streamline operations with the ELO 17-Inch Touchscreen Monitor. From order processing to interactive displays, this monitor empowers businesses to create immersive and engaging experiences, driving customer satisfaction and operational efficiency.

Choose the ELO 17-Inch Touchscreen Monitor for a display solution that redefines interactivity, durability, and adaptability. Elevate your business environment with a touch of technological sophistication – where precision meets versatility.

Elo 1715L Touchscreen Monitor Other features:

  • Affordability paired with Elo quality OR Consumer-grade pricing with Elo commercial-grade reliability
  • Designed for touch features such as a stable tilt stand
  • Long-lasting product cycle
  • Sealed touchscreen against dirt, dust and liquids
  • Dual serial/USB interface
  • Removable stand and?VESA mounting?option
  • Mounting holes on stand bottom for tabletop security
  • Digital on-screen display (OSD)
  • Worldwide agency approvals
  • Three-year standard warranty



Additional information


Elo 1715L Touch Screen Monitor (IntelliTouch) [Mfr Part # E719160], Elo 1715L Touch Screen Monitor (AccuTouch) [Mfr Part # E603162]

Part Number(s):
IntelliTouch (Americas, EMEA) – E719160
AccuTouch (Americas, EMEA) – E603162
Enclosure Color: Dark Gray
Touch Technology & Capacity:
5-Wire Resistive (AccuTouch?) – Single-Touch
SAW (IntelliTouch? Surface Acoustic Wave) – Single Touch
Diagonal Size: 17” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 5:4
Active Area (mm): 13.3″ x 10.6″ / 338mm x 270mm
Resolution: 1280 x 1024
Other Supported Resolutions:?
1280 x 1024 60, 75 Hz
1280 x 960 60 Hz
1152 x 864 75 Hz
1024 x 768 60, 70, 75 Hz
1024 x 768 65 Hz (Sun)
832 x 624 75 Hz (Mac)
800 x 600 56, 60, 72, 75 Hz
720 x 400 70 Hz
720 x 350 70 Hz
640 x 480 60, 72, 75 Hz
640 x 480 66 Hz (Mac)
Viewing Angle: Horizontal: ?85? or 170? total / Vertical: ?80? or 160? total
Number of Colors: 16.7 million
Brightness (typical):
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nits
PCAP: 225 nits
Response Time-total (typical): 5 msec
Contrast Ratio: 1000:1
Input Video Format: Analog VGA
Input Video Signal Connector: Mini D-Sub 15-Pin VGA type
Power Supply: Internal AC, Optional external DC (power brick)
Input Voltage: AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ?5%
Input Connector: AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Input Frequency:
Horizontal: 31.5-80 kHz
Vertical: 56.3-75 Hz
Power Consumption (Typical):?
Monitor only:
ON: 10.52 W
SLEEP: 1.34 W
OFF: 0.46 W
On Screen Display:?
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controls
Monitor Dimensions (with Stand): 15.4″ x 8.0″ x 14.4″ / 391mm x 203mm x 366mm
Shipping Box Dimensions: 17.99″ x 11.42″ x 17.32″ / 457mm x 290mm x 440mm
Weight (with stand): 15.2 lb / 6.9 kg
Shipping Weight (With stand): 21.2 lb / 9.6 kg
Operating Temperature: 0?C to 40?C / 32?F to 104?F
Storage Temperature: -20?C to 60?C / -4?F to 140?F
Humidity: Operating: 20% to 80%; Storage: 10% to 90%
Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated
Stand Options: Tilt, remove
Mounting Options:?
100 mm VESA mount
Threaded-through mounting holes, under stand
Other Features: Security lock receptacle
Warranty: 3-year
Extended Warranty Options:
4 year warranty coverage?- Elo P/N:?E898247
5 year warranty coverage?- Elo P/N:?E898449
3 year warranty coverage + AUR?- Elo P/N:?E898648
4 year warranty coverage + AUR?- Elo P/N:?E894921
5 year warranty coverage + AUR?- Elo P/N:?E895125
Regulatory approvals and declarations: UL, cUL , FCC, CE, UKCA, VCCI, IC, RCM
What’s in the Box:? QIG, User Manual CD, VGA cable, Serial cable (attached if support combo), power cord, USB cable
Replacement DC Power Supply: The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E757851, is available at additional cost.
AC Power Cable:
A North American power cable is included with the part numbers available in the regions other than EMEA. European and UK AC power cables are included with the part numbers available for the EMEA region.
United States: E042259
Europe: E690013
United Kingdom: E235317
Optional IntelliTouch Stylus Pen:Stylus pen with rubber tip, designed specifically for use with IntelliTouch or iTouch surface wave touch technology. Elo P/N: D82064-000, available at additional cost.
Touch/Video/Audio/Accessory Cables:USB touch cable and VGA video cable are included. Cable Kits for replacement cables (Gray – Elo P/N: E378229) (Beige – Elo P/N: E410150)
