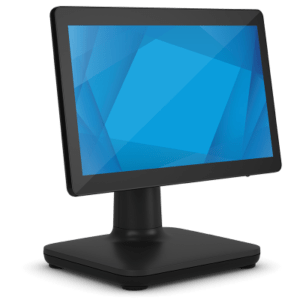

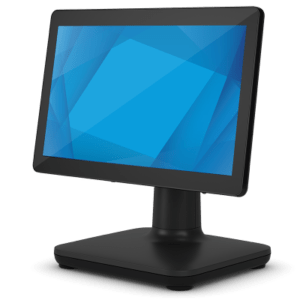

Elo E-Series 2 POS System | No OS/Windows 10, 15.6-Inch Wide, 1366×768 HD Display, Celeron, 4GB RAM, 128GB SSD, Projected Capacitive 10Ttouch, Clear, Ethernet, Black, Stand, Worldwide
£866.94 Inc. VAT (£722.45 Ex. VAT)
Product Codes: E136131, E135925
Purpose-built for point of sale, the E-Series 2 offers a 15.6-inch touchscreen display, Intel’s 8th generation Celeron processor and an integrated expansion hub to connect the peripherals you need. The E-Series 2 includes USB-C connectivity, allowing you to easily connect a customer-facing display – providing touch, data and power with just one cable.
Seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change! Integrated into the base of the stand, the expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all.
Features:
- 15.55” / 395 mm diagonal, active matrix TFT LED LCD display
- Intel® Celeron® Processor J4125 (4M Cache, up to 2.7 GHz)
- 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 8GB)
- 128GB M.2 SATA SSD, 80 TBW
- Description
- Specifications
- Download
Description
Elo E-Series 2 POS System | No OS/Windows 10, 15.6-Inch Wide, 1366×768 HD Display, Celeron, 4GB RAM, 128GB SSD, Projected Capacitive 10Ttouch, Clear, Ethernet, Black, Stand, Worldwide
Product Codes: E136131, E135925
Purpose-built for point of sale, the Elo E-Series 2 POS System offers a 15.6-inch touchscreen display, Intel’s 8th generation Celeron processor and an integrated expansion hub to connect the peripherals you need.
Add a customer-facing display with ease.
The E-Series 2 includes USB-C connectivity, allowing you to easily connect a customer-facing display – providing touch, data and power with just one cable.
Expand with Elo Edge Connect.
Seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Connect all of your POS accessories.
Integrated into the base of the stand, the expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices there is connectivity to cover it all.
Windows or Linux. You choose.
The E-Series 2 utilizes the reliability-tested performance and security of Intel’s 8th Generation Celeron processor, integrated Trusted Platform Modules and the Windows 10 operating system. For added flexibility, the E-Series 2 offers models with no OS – all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
A POS system you can count on.
Rigorously tested and backed by a three-year warranty. With splash-proof housing and a rugged retail-hardened design, the E-Series 2 can withstand the adverse conditions associated with most commercial environments.
Order your Elo E-Series 2 POS System today!
Part Number(s):
No OS – E135925
Win 10 – E136131
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro Projected Capacitive) – 10 Touch
Processor: Intel Celeron Processor J4125 (4M Cache, up to 2.7 GHz)
Graphics: Intel UHD Graphics 600
BIOS: AMI
Memory (RAM):
4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots
(Expandable to 8GB maximum on 2 slots)
Storage:?128GB M.2 SATA SSD, 80 TBW
TPM:?2.0
Diagonal Size:?15.6” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio:?16:9
Active Area (mm):?13.55″ x 7.62″ / 344.2 mm x 193.5 mm
Resolution:?1366 x 768 @ 60Hz
Number of Colors:?266,144
Brightness (typical):
LCD Panel: 220 nits
PCAP: 187 nits
Response Time-total (typical):?10 msec
Contrast Ratio:?400:1
Viewing Angle:?Horizontal: 45?/45? or 90? total / Vertical: 15?/35? or 50? total
USB Ports:
3 x USB 3.0 (1 on display head, 2 on I/O)
2 x USB 2.0 (on I/O)
4 x Micro USB 2.0 (on display head)
Powered USB:
1 x 24V on I/O
2 x 12V on I/O
Ethernet Port:?1 x LAN RJ45 (Gigabit)
Serial Ports:?2 x RJ45
Cash Drawer Port:?12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch)
Additional Video Out:?1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)
Audio Ports:?1 x 3.5 mm headset jack
Speakers:?2 x 2W internal speakers
OS:
No OS
Windows 10 IoT Enterprise LTSC 64-bit
Languages:?Windows 10 – 36 Language groups
Power Supply:
External 24VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 180W
Power Consumption (Typical):?24W
Dimensions:?15.2″ x 14.54″ x 8.71″ / 386.2 mm x 369.3 mm x 221.2 mm
Shipping Box Dimensions:?18.19″ x 11.77″ x 18.5″ / 462 mm x 299 mm x 470 mm
Weight (Unpackaged):?10.4 lbs / 4.7 kg
Weight (Packaged):?15.2 lbs / 6.9 kg
Operating Temperature:?0?C to 35?C / 32?F to 95?F
Storage Temperature:?-20?C to 60?C / -4?F to 140?F
Humidity:
Operating: 20% to 80%
Storage: 5% to 95% (38.7? max wet bulb temperature)
Regulatory approvals and declarations:?UL/cUL, FCC, TUV, CE, CB, NOM, S-Mark, UKCA
Real-Time Clock:?CR2032 lithium metal battery
MTBF:?50,000 hours demonstrated
Mounting Options:?75mm VESA mount
Warranty:?3-year
Extended Service Options:
4 year warranty coverage – Elo P/N: E819598
5 year warranty coverage – Elo P/N: E819795
3 year warranty coverage + AUR – Elo P/N: E820186
4 year warranty coverage + AUR – Elo P/N: E820388
5 year warranty coverage + AUR – Elo P/N: E820582
Sealability:
Touchscreen sealed to sub-bezel
Touchscreen sealed to LCD
Power Cables:?North American and European power cables included
Other Features:
Serviceable internal components.
Kensington lock.
What’s in the Box:
E-Series 2
North America Power Cord
EU Power Cord
Power Adapter ? 180W
Cable Management Kit
Quick Installation Guide (QIG)
Upgrade Options:
4GB 2666 MHz DDR4 Memory SO-DIMM – Elo P/N: E264186
M.2 SATA 128GB SSD ? Elo P/N: E206352
M.2 SATA 256GB SSD ? Elo P/N: E206556
Optional Peripherals:
Magnetic Stripe Reader (MSR) ? Elo P/N: E001002
Fingerprint Scanner ? Elo P/N: E134286
10″ LCD Customer-facing Display (10 touch) ? Elo P/N E155834 (requires display mount kit E835969)
10″ LCD Customer-facing Display (no touch) ? Elo P/N E324341 (requires display mount kit E835969)
1302L Customer-facing Display (10 touch) ? Elo P/N: E683595 (requires display mount kit E835969 which includes authorized Elo 2ft USB-C cable)
EMV Cradle for MagTek eDynamo – Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) – Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) – Elo P/N: E710930
Status Light (Micro-USB Connectivity) – Elo P/N: E466847
6ft Elo authorized USB-C cable ? Elo P/N: E710364
Stands, Mounts & Kits:
Shelf Mount Bracket (75mm or 100mm VESA) – Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) – Elo P/N: E048069
Pole Mount ? 6 inch (75mm or 100mm VESA) – Elo P/N: E047458
Pole Mount ? 12 inch (75mm or 100mm VESA) – Elo P/N: E047663
Pole Mount ? 18 inch (75mm or 100mm VESA) – Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) – Elo P/N: E045151
Rear-facing Display Mount – Elo P/N: E835969 (Requires authorized 2ft USB-C cable)
Power Brick Kit, 24V 180W – Elo P/N: E845269
Elo 2ft authorized USB-C cable – Elo P/N: E969524
