Description

Urovo FR7000 Series RFID Reader

Ultra-fast tag reading

• Reads up to 1,300+ tags/sec, handling fast-moving tags with ~99.7% accuracy.
• Other sources note speeds from 1,000 to 2,000 tags/sec, depending on config.

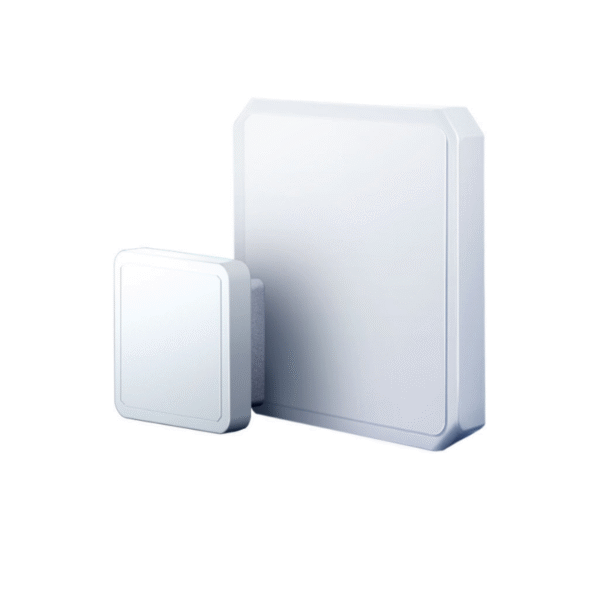

Dual antenna options

• 6 dBi circular-polarized antenna with ~7 m max range.
• 9 dBi antenna extends reach to ~12 m, ideal for large coverage.

Built-in antenna & compact design

• Simplifies setup, reduces signal losses.

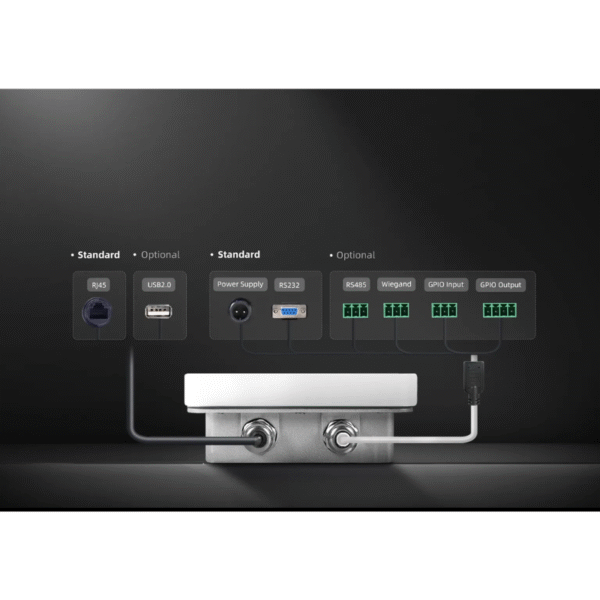

Versatile connectivity

• Standard: RS‑232, RJ‑45 Ethernet.
• Optional: RS‑485, Wiegand, GPIO, USB 2.0.
• Optional Power‑over‑Ethernet (PoE) support.

Industrial-grade durability

• Plastic + aluminum alloy housing with IP67 rating for dust and water resistance.
• Operates from –10 °C to +55 °C.

Applications & Use Cases

• Asset tracking in manufacturing and warehousing

• Logistics sorting and vehicle access control

• Library/archive automation

• High-volume inventory management across retail, healthcare, and transportation industries

The Urovo FR7000 is built to handle heavy-duty RFID tasks with speed, precision, and resilience. Whether you need short-range deployment with the 6 dBi model or extended coverage with the 9 dBi antenna, it offers flexible connectivity (Ethernet, serial, USB, Wiegand) and a compact, rugged design rated for tough environments. Its impressive read rates—up to 1,300 tags/sec—and near-perfect accuracy make it a reliable workhorse for real-time tagging scenarios.
