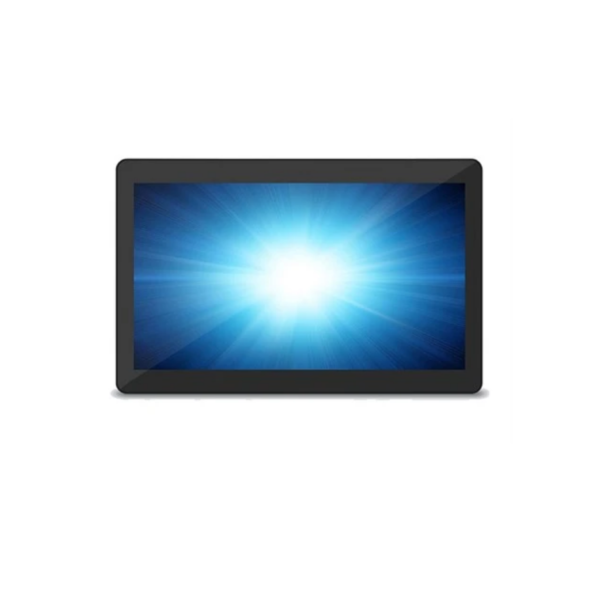

Elo 15-inch I-Series for Windows (2.0) | PCAP, i2/i3/i5 Intel Core Processor, With/Without Windows 10, USB 3, Micro USB, LAN RJ45, Bluetooth 5, Black, 3 Year Warranty
£883.19 – £1,877.99
Product Codes: E691852, E692048, E850204, E850003, E692244, E692448
Elo’s I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor. Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
- Description
- Additional information
- SPECIFICATIONS
- Download
Description
Elo 15-inch I-Series for Windows (2.0) | PCAP, i2/i3/i5 Intel Core Processor, With/Without Windows 10, USB 3, Micro USB, LAN RJ45, Bluetooth 5, Black, 3 Year Warranty
Product Codes: E691852, E692048, E850204, E850003, E692244, E692448
Elo 15-inch I-Series for Windows (2.0) delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform all in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.
Stands & Mounts
With a standard VESA mount, we give you the flexibility to mount our products however you want.
Windows or Linux. You Choose.
Elo’s I-Series utilizes the reliability-tested performance and security of Intel’s 8th-generation processors and vPro platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
Additional information
Options | I Series 2 – 15 inch, PCAP, i5, Windows 10 [Mfr Part # E692244], I Series 2 – 15 inch, PCAP, i3, no OS [Mfr Part # E850003], I Series 2 – 15 inch, PCAP, i3, Windows 10 [Mfr Part # E850204], I Series 2 – 15 inch, PCAP, i5, no OS [Mfr Part # E692448], I Series 2 – 15 inch, PCAP, i2, no OS [Mfr Part # E692048], I Series 2 – 15 inch, PCAP, i2, Windows 10 [Mfr Part # E691852] |
---|
Part Number(s):
PCAP Celeron Win10 – E691852
PCAP Celeron No OS – E692048
PCAP i3 Win10 – E850204
PCAP i3 No OS – E850003
PCAP i5 Win10 – E692244
PCAP i5 No OS – E692448
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro Projected Capacitive) – 10 Touch
Processor:
Celeron: Intel Celeron J4105 Processor (4M Cache, up to 2.5 GHz)
i3: Intel Core i3-8100T Processor (6M Smart Cache, 3.10 GHz)
i5: Intel Core i5-8500T Processor (9M Smart Cache, up to 3.50 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro Support
Chipset:
Celeron: N/A
i3: Intel H310 Express
i5: Intel Q370 Express
Graphics:
Celeron: Intel UHD Graphics 600
i3 & i5: Intel UHD Graphics 630
BIOS: AMI
Memory (RAM):
Celeron: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 8GB maximum on 2 slots)
NOTE: Maximum memory using 2 slots. Expandable up to 8GB maximum, SO-DIMM DDR4-2666. Check brand of the memory included in your unit before purchasing the memory kit.
i3 & i5: 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots)
NOTE: Maximum memory using 2 slots. Expandable up to 32GB maximum, SO-DIMM DDR4-2666. Check brand of the memory included in your unit before purchasing the memory kit.
Storage
128GB M.2 SATA SSD 72 TBW
GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
TPM: 2.0
Active Management Technology (AMT):
Celeron: N/A
i3 & i5: Active Management Technology (Intel AMT 11.0) Support
Diagonal Size: 15.6” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area (mm): 13.55″ x 7.62″ / 344.2 mm x 193.5 mm
Resolution: 1920 x 1080 @ 60Hz
Number of Colors: 266,144
Brightness (typical):
LCD panel: 300 nits
TouchPro PCAP: 270 nits
Response Time-total (typical): 25 msec
Contrast Ratio: 700:1
Viewing Angle: Horizontal: 80 or 160 total / Vertical: 80 or 160 total
USB Ports:
1 x USB 3.0
4 x Micro USB 2.0 on edges for optional Elo Edge Connect peripherals
Ethernet Port: 1 x LAN RJ45 (Gigabit)
Wireless: Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz
Bluetooth: Bluetooth 5.0
Audio Ports: 1 x 3.5mm line out
Speakers: 2 x 2W internal speakers
OS:
No OS
Windows 10 IoT Enterprise LTSC 64-bit
Optional – Windows 10 Professional English 64-bit
Languages: Windows 10 – 36 Language groups
Power Supply:
External USB-C power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 100W
Power Consumption (Typical):
Celeron: 30W
i3: 67 W
i5: 73 W
Dimensions: 15.13″ x 9.7″ x 1.72″ / 384.2 mm x 246.4 mm x 43.8 mm
Shipping Box Dimensions: 18.19″ x 8.5″ x 13.57″ / 462 mm x 216 mm x 346 mm
Weight (Unpackaged): 4.9 lbs / 2.2 kg
Weight (Packaged): 9.5 lbs / 4.3 kg
Operating Temperature: 0C to 35C / 32F to 95F
Storage Temperature: -20C to 60C / -4F to 140F
Humidity:
Operating: 20% to 80%
Storage: 5% to 95% (38.7C max wet bulb temperature)
Regulatory approvals and declarations: UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC
Real-Time Clock: CR2032 lithium metal battery
MTBF: 50,000 hours demonstrated
Mounting Options: 75mm VESA mount
Warranty: 3-year
Extended Warranty Options:
4 year warranty coverage- Elo P/N:E819598
5 year warranty coverage- Elo P/N:E819795
3 year warranty coverage + AUR- Elo P/N:E820186
4 year warranty coverage + AUR- Elo P/N:E820388
5 year warranty coverage + AUR- Elo P/N:E820582
Sealability:
Touchscreen sealed to sub-bezel
Touchscreen sealed to LCD
Power Cables: North American and European power cables included
Other Features:
Serviceable internal components
Kensington lock
What’s in the Box:
I-Series 2.0 for Windows Touchcomputer
North America Power Cord
European Power Cord
Power Adapter – 100W
Cable cover locking screw
Quick Install Guide
Upgrade Options:
4GB 2666 MHz DDR4 Memory SO-DIMM – Elo P/N: E264186
8GB 2666 MHz DDR4 Memory SO-DIMM – Elo P/N: E264375
16GB 2666 MHz DDR4 Memory SO-DIMM – Elo P/N: E263989
M.2 SATA 128GB SSD Elo P/N: E206352
M.2 SATA 256GB SSD Elo P/N: E206556
Optional Peripherals:
Magnetic Stripe Reader (MSR) Elo P/N: E001002
Fingerprint Scanner Elo P/N: E134286
2D Barcode Scanner Elo P/N: E926356
EMV Cradle for MagTek eDynamo – Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) – Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) – Elo P/N: E710930
Status Light (Micro-USB Connectivity) – Elo P/N: E466847
Stands, Mounts & Kits:
Wall Mount Kit (75mm or 100mm VESA) Elo P/N: E143088
Tabletop Stand for 15” I-Series – Elo P/N: E044162 (Requires E388675 adaptor kit)
Shelf Mount Bracket (75mm or 100mm VESA) – Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) – Elo P/N: E048069
Pole Mount 6 inch (75mm or 100mm VESA) – Elo P/N: E047458
Pole Mount 12 inch (75mm or 100mm VESA) – Elo P/N: E047663
Pole Mount 18 inch (75mm or 100mm VESA) – Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) – Elo P/N: E045151
Wallaby Self-Service Countertop Stand (75mm or 100mm VESA) – Elo P/N: E796783
Wallaby Self-Service Floor Stand (75mm or 100mm VESA) – Elo P/N: E796965 + E797162
Slim Self-Service Countertop Stand (75mm or 100mm VESA) – Elo P/N: E514693
Slim Self-Service Floor Stand (75mm or 100mm VESA) – Elo P/N: E514881 + E515260
100W USB-C power supply – Elo P/N: E369922
USB Hub and mounting bracket – Elo P/N: E350807
Right angle RJ LAN cable adaptor kit – Elo P/N: E350616
EloPOS Expansion Module (with a 6-ft USB-C cable) Elo P/N: E263603
15 EloPOS Stand Elo P/N: E203820
100mm Adaptor Kit Elo P/N: E388675
Right angle 6ft USB-C cable kit Elo P/N: E667197
USB-C Hub & Bracket kit Elo P/N: E350996
